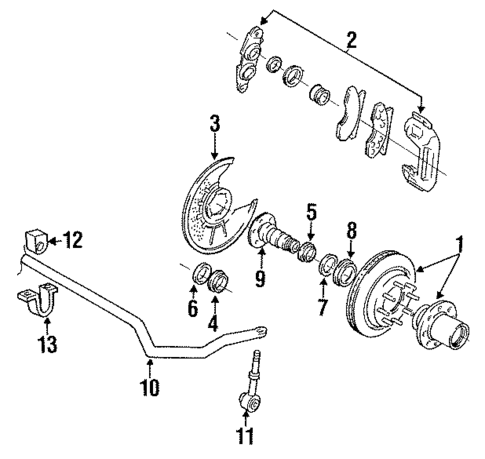

Stabilizer Bar & Components for 1990 Ford F-250

Knuckle, Left

F250 pick-up. Left side. F350. E250-350 vans.

Radius Arm, Left

Heavy duty. Left. 2wd f150, f250, f350, f250, f350, with dual rear. F250 pick-up.

Radius Arm Mount Bracket, Left

2 wheel drive. 4 wheel drive. F250ld. Left. F150, 4wd.

Radius Arm Mount Bracket, Left

F350. Left. F250hd.

Radius Arm Insulator, Left

Axle, Left

F250 pick-up. Left. F350.

Shock, Left

F250 pick-up. F150, f250, f350 with 2wd, f250 under 8600 gvw. 2wd f150, f250, f350, f250, standard.

Spring, Left

F350. F150. F250 pick-up.

Seat, Left

F250 pick-up. Left. Without stabilizer bar. To 1/92. F350. From 2/92. F150.

Seat, Right

F250 pick-up. Right. F150, f250, f350 with 2wd, with stabilizer bar, f150.

Seat Retainer, Left

4 wheel drive, upper. 2 wheel drive, lower. F350. F150, 4wd, lower. Without 4wd, twin i beam, lower. RWD. lower. Without 4wd, monobeam axle. lower. 2wd, twin i beam. lower.

Caliper, Right

E350. E250. 4wd f250. F250 pick-up. 2wd f150, f250, f350, f250, f350. Dual piston. Right. From 3/91.

Splash Shield, Right

F150, f250, f350 with 2wd, f250 & f350. 2 wheel drive, f250, dual piston. 2 wheel drive, f350.

Outer Bearing, Left

Stabilizer Bar Bushing, Left

F350, 4wd. F150, f250, f350 with 2wd, f250 & f350, diesel, with super cooling. 2wd super duty.

Stabilizer Bar Bracket, Left

2 wheel drive, to frame, f250 & 350. 4 wheel drive, f150.

Stabilizer Link, Right

Left. Bronco. F150, 4wd.

Stabilizer Bar Retainer, Left

F150, f250, f350 with 2wd, f250 & f350, to frame. F250, 4wd. U shape. F150, 4wd, with hd. 4wd, to crossmember.

Shock

Motorcraftâ„¢ Shock

Motorcraftâ„¢ Shock

Shackle

F250, f350, f250 2wd. F250, f350, f350 4wd. From 1/83, front. F150, 4wd.

Front Bracket

F250 & 350, f250, 2wd, 136, 138 wb. F250, f350, f250 2wd, 136, 138 whlbase. F150, 4wd. Front.

Hub & Drum

F250, f350, f250 & f350. E300 & 350, without duals. 10x2 1/2, dana 30. Exc.10.25" Ring Gear. 12 x 3" Brakes. F350, without dual wheel. E350. Single rear wheels. Right.

Backing Plate, Left

Drum brakes, e350, without dual wheels. F250 hd, f350, without dual wheels. F250, f350, f250, f350, 12 drum. E250 & e350. Drum brakes, e250. F150 & f250 ld, 12x2.5 drum. E300 & 350.

F250 pick-up. F350.

F250, f350, without chassis cab. E150-350 vans. E-350 Super Duty. E-450 Super Duty.

Stabilizer Link

Bronco. F150, 4wd. F250 pick-up. 4wd.

Axle Shaft, Right

F350. 10.25 ring gear. Semi-floating. Right side. F150 & f250 ld, f250. F250, f350, f250. F250 pick-up. 10.25 ring gear.

F150 & f250 ld, f250. F250, f350, f250.

Motorcraftâ„¢ Axle Seal

Semi-Floating Axle. Without traction control. E100-350 vans. Ring Gear 9.75". E250-350 vans. Exc.10.25" Ring Gear. E150 vans. Drum brakes, e250. 12 x 2.5" Rear Brakes. F250 pick-up.

Motorcraftâ„¢ Bearing

Semi-Floating Axle. E150-350 vans. 12 x 2.5" Rear Brakes. Ring Gear 9.75". Exc.10.25" Ring Gear. E250. 12 x 3" Rear Brakes. F250.

Hub & Rotor, Left

F250, 4wd, dana 44. Over GVW 8,500 Lbs.. Exc.4,600 Lbs. Front Axle. Drive Ratio 4.10. Drive Ratio 3.55.

Splash Shield, Right

F350, 4wd. 4wd f250, dana 50.

Splash Shield, Left

F350, 4wd. 4wd f250, dana 50.

Bearing, Left

Bearing, Left

Aviator, Explorer. Mountaineer. Bearing.

Bearing Cup

Cup. F250, 4wd, outer, dana 44. F150, 4wd, outer. Exc.4,600 Lbs. Front Axle. Ranger. Explorer. Race.

Bearing Cup

F250, 4wd, inner, dana 44. Exc.4,600 Lbs. Front Axle.

Bearing Seal, Left

Grease, dana 50. 4wd f250, dana 50. F350, 4wd. 4,600 Lbs. Front Axle.

Spindle, Left

4wd f250, dana 50. 4 wheel drive, f350.

Stabilizer Link, Left

F250, 4wd. 4 wheel drive, f250 & 350, without monobeam. Exc.Mono Beam Axle.

Retainer, Left

F150, f250, f350 with 2wd, f250 & f350, to frame. F250, 4wd. U shape. F150, 4wd, with hd. 4wd, to crossmember.
