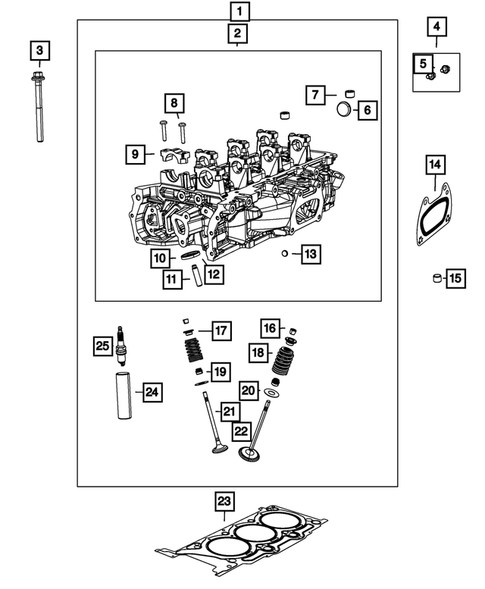

Cylinder Head for 2015 Dodge Grand Caravan
Mopar With Valves. WARNING: Cylinder Heads Are Shipped WITHOUT Oil Gallery Bolts/Plugs, Bolt/Plug Kit 68154699AA MUST Be Used Or Trouble Codes Will Be Set.
Mopar With Valves. Remanufactured Cylinder Heads Include Cylinder Head Gasket
Mopar With Valves. WARNING: Cylinder Heads Are Shipped WITHOUT Oil Gallery Bolts/Plugs, Bolt/Plug Kit 68154699AA MUST Be Used Or Trouble Codes Will Be Set.
Mopar Cylinder Head Oil Gallery Bolt Kit
WARNING: Bolt Kit MUST Be Used When Replacing Cylinder Heads. Trouble Codes Will Be Set If Not Installed.. Bolt Kit MUST Be Used When Replacing Cylinder Heads. Use One [1] Kit Per Cylinder Head
Mopar M8X1.25X12.00. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly
Mopar Core Plug, Right Cylinder Head
1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
Mopar Pipe Plug, Left Cylinder Head
.375-18X.475. Oil Gallery In In Cylinder Head Valley
Mopar 6 Lobe Recessed Head Bolt, Mounting Left Side
M6X1.00X34.00. Camshaft Bearing Cap To Cylinder Head
Mopar To Cylinder Head. Exhaust Flange to Manifold.
Mopar Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
Mopar Black And Brown Are Interchangable. But All One Color Must Be Used On The Cylinder Head At The Same Time.. Brown
Mopar Hex Flange Head Bolt, Mounting Left Side
M6X1.00X37.00. Cylinder Head Cover To Cylinder Head
Mopar Double Ended Stud, Mounting Left Side
M6-1.00X79.70. Cylinder Head Cover To Cylinder Head
Mopar Spark Plug Well Gasket, Right Side
Right Side. Left Side. Cylinder Head Cover.
Mopar Camshaft Sensor Seal, Left Side
Right Side. Left Side. Camshaft Phaser.
Mopar Seal, Left Side
NOT Included With Long Block Engine Install Kit. Camshaft Phaser
